YG-1
66515PC

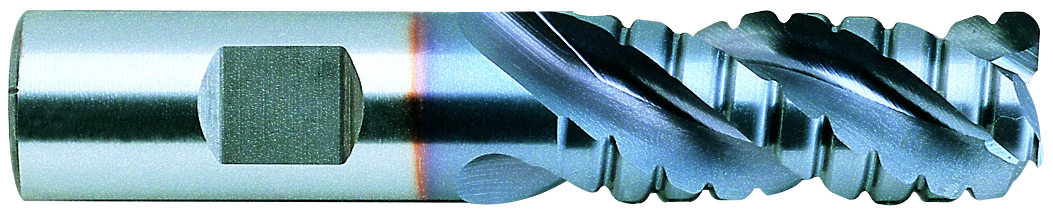

1/2x1/2x1*1/4 3FL.REG.SE.ROUGH.ALUM.T15.TICN-COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 31.75 |
| Material | T15 |
| Diameter (Metric) | 12.70 |
| Overall Length (Inch) | 3.2500 |
| Diameter (Inch) | 0.5000 |
| Length Of Cut (Inch) | 1.2500 |
| Short Description | 3FL.REG.SE.ROUGH.ALUM.T15.TICN-COATED |
| Series | EK191 |
| Weight | 0.1610 |
| Cut Type | Center Cut |
| Overall Length (mm) | 8.255 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.5000 |
| Coating | TiCN |
| Size | 1/2x1/2x1*1/4 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 1.27 cm |
