YG-1
66519PC

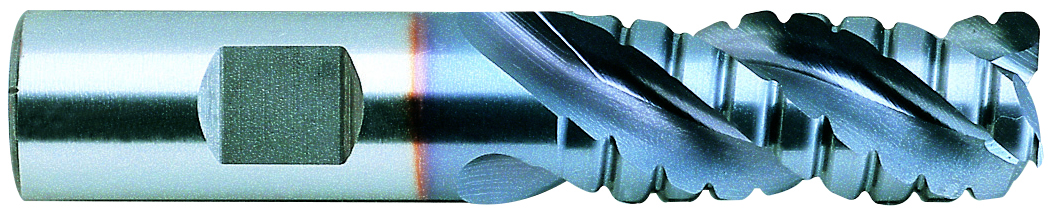

5/8 x 5/8 x 1-5/8 x 3-3/4 3FL REG SE ROUGH ALUM T15 TICN-COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 41.28 |
| Material | T15 |
| Diameter (Metric) | 15.88 |
| Overall Length (Inch) | 3.7500 |
| Diameter (Inch) | 0.6250 |
| Length Of Cut (Inch) | 1.6250 |
| Short Description | 3FL REG SE ROUGH ALUM T15 TICN-COATED |
| Series | EK191 |
| Weight | 0.2870 |
| Cut Type | Center Cut |
| Overall Length (mm) | 9.525 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.6250 |
| Coating | TiCN |
| Size | 5/8 x 5/8 x 1-5/8 x 3-3/4 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 1.59 cm |
