YG-1
66909

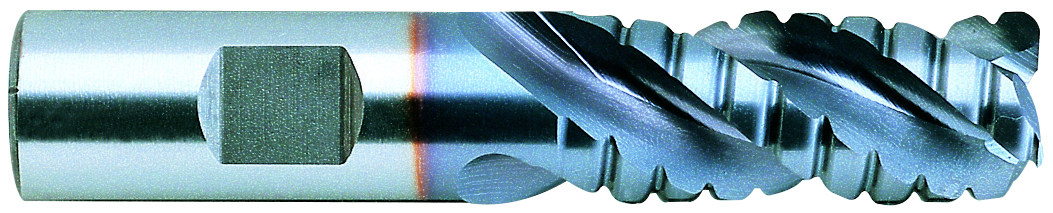

1*1/4 x 1*1/4 3FL.REG.R.060.ROUGH.ALUM.T15
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 50.80 |
| Material | T15 |
| Diameter (Metric) | 31.75 |
| Overall Length (Inch) | 4.5000 |
| Diameter (Inch) | 1.2500 |
| Length Of Cut (Inch) | 2.0000 |
| Short Description | 3FL.REG.R.060.ROUGH.ALUM.T15 |
| Series | EK191 |
| Corner Radius (Metric) | 1.52 |
| Corner Radius (Fraction) | 3/50 |
| Weight | 1.2325 |
| Cut Type | Center Cut |
| Overall Length (mm) | 11.43 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 1.2500 |
| Coating | Bright |
| Size | 1*1/4 X 1*1/4 |
| Corner Radius (Inch) | 0.0600 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 3.17 cm |
