YG-1
67904PC

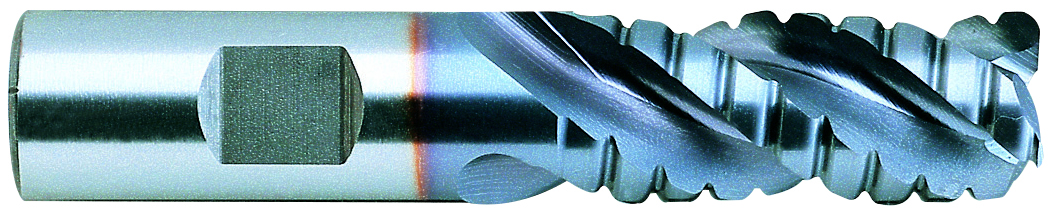

3/4 x 3/4 x 3 x 5-1/4 3FL LONG SE R.060 ROUGH ALUM T15 TICN-COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 76.20 |
| Material | T15 |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 5.2500 |
| Diameter (Inch) | 0.7500 |
| Length Of Cut (Inch) | 3.0000 |
| Short Description | 3FL LONG SE R.060 ROUGH ALUM T15 TICN-COATED |
| Series | EK192 |
| Corner Radius (Metric) | 1.52 |
| Corner Radius (Fraction) | 3/50 |
| Weight | 0.5240 |
| Cut Type | Center Cut |
| Overall Length (mm) | 13.335 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiCN |
| Size | 3/4 x 3/4 x 3 x 5-1/4 |
| Corner Radius (Inch) | 0.0600 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 1.91 cm |
