YG-1
67909PC

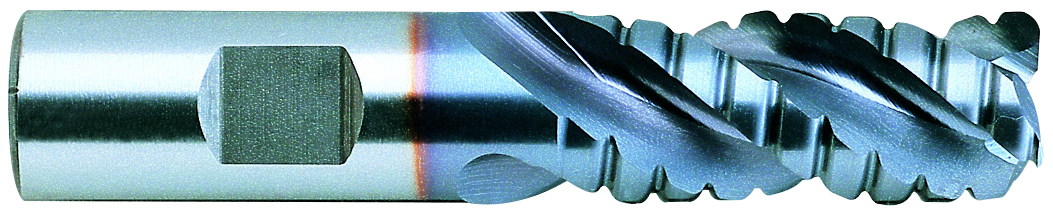

1 x 1 R.120 3FL. LONG. SE. ROUGH. ALUM. T15 TICN COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 101.60 |
| Material | T15 |
| Diameter (Metric) | 25.40 |
| Overall Length (Inch) | 6.5000 |
| Diameter (Inch) | 1.0000 |
| Length Of Cut (Inch) | 4.0000 |
| Short Description | 3FL. LONG. SE. ROUGH. ALUM. T15 TICN COATED |
| Series | EK192 |
| Corner Radius (Metric) | 3.05 |
| Corner Radius (Fraction) | 3/25 |
| Weight | 1.1115 |
| Cut Type | Center Cut |
| Overall Length (mm) | 16.51 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 1.0000 |
| Coating | TiCN |
| Size | 1 x 1 R.120 |
| Corner Radius (Inch) | 0.1200 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 2.54 cm |
