YG-1
68426CN

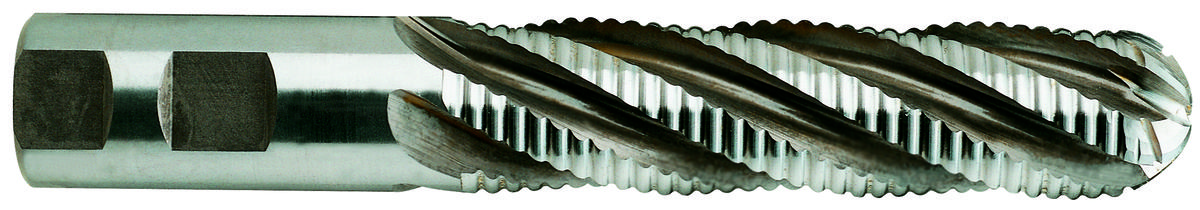

1 x 1 5 FL. REG. BALL. ROUGH. TIN COATED.,8% COBALT
Specifications
| Coating/Finish | TiN |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 25.4 |
| Overall Length (Inch) | 4-1/2 |
| Length Of Cut (Inch) | 2 |
| Overall Length (Metric) | 114.3 |
| Cutting Direction | Right |
| Type | HSSCo8 5 Flute Regular Length Corase Pitch Roughing Ball Nose |
| Shank Size (Inch) | 1 |
| Material | HSSCo8 |
| Length Of Cut (Metric) | 50.8 |
| Number Of Flutes | 5 |
| Diameter (Inch) | 1 |
| Unit Of Measure | Fractional |
| Short Description | 5 FL. REG. BALL. ROUGH. TIN COATED.,8% COBALT |
| Shank Diameter (Decimal) | 1 |
| Shank Diameter (Metric) | 25.4 |
| Application | P |
| Length of Cut | 2 Inch |
| Series | E2193 |
| Diameter | 1 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.5 |
| Ball Nose Radius (Metric) | 12.7 |
| Ball Nose Radius (Fractional) | 1/2 |
| Cut Type | Center Cut |
| Base Item Number | 5 FL. REG. BALL. ROUGH. TIN COATED.,8% COBALT |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.9275 |
| Shank Diameter (Inch) | 1.0000 |
| Size | 1 X 1 |
| Shank Style | Flat |
