YG-1
69337CE

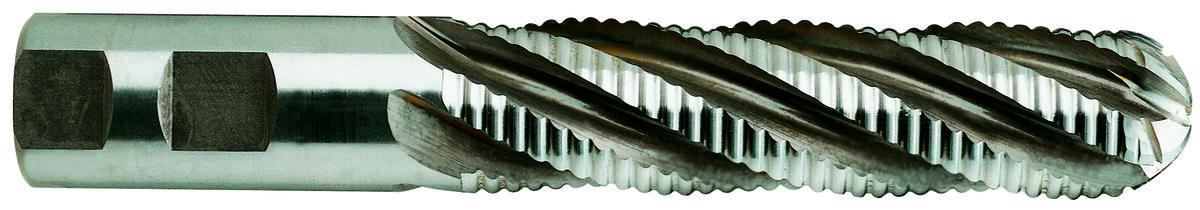

5/8 x 5/8 x 2 1/2 x 4 5/8 4FL LONG SE BALL ROUGHING TIALN EXTREME COATED 8% COBALT
Specifications
| Coating/Finish | TiAIN E |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 15.88 |
| Overall Length (Inch) | 4-5/8 |
| Length Of Cut (Inch) | 2-1/2 |
| Overall Length (Metric) | 117.48 |
| Cutting Direction | Right |
| Type | HSSCo8 4 Flute Long Length Coarse Pitch Roughing Ball Nose |
| Shank Size (Inch) | 5/8 |
| Material | HSSCo8 |
| Length Of Cut (Metric) | 63.5 |
| Number Of Flutes | 4 |
| Diameter (Inch) | 5/8 |
| Unit Of Measure | Fractional |
| Short Description | 4FL LONG SE BALL ROUGHING TIALN EXTREME COATED 8% COBALT |
| Shank Diameter (Decimal) | 0.63 |
| Shank Diameter (Metric) | 15.88 |
| Application | P |
| Length of Cut | 2-1/2 Inch |
| Series | E2125 |
| Diameter | 5/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.31 |
| Ball Nose Radius (Metric) | 7.94 |
| Ball Nose Radius (Fractional) | 5/16 |
| Cut Type | Center Cut |
| Base Item Number | 4FL LONG SE BALL ROUGHING TIALN EXTREME COATED 8% |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.3490 |
| Shank Diameter (Inch) | 0.6250 |
| Size | 5/8 x 5/8 x 2 1/2 x 4 5/8 |
| Shank Style | Flat |
