YG-1
70312CF

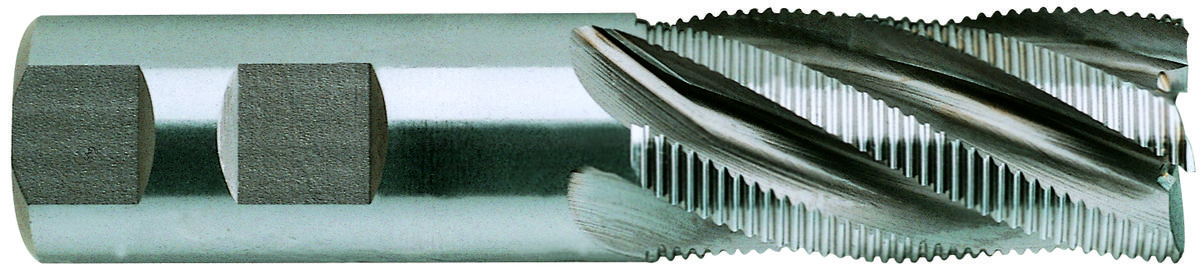

7/16 x 3/8 x 1 x 2 11/16 4FL REG FINE ROUGH TiALN FUTURA COATED
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 25.40 |
| Material | HSSCo8 |
| Diameter (Metric) | 11.11 |
| Overall Length (Inch) | 2.6875 |
| Type | HSSCo8 4 Flute Regular Length Fine Pitch Roughing |
| Diameter (Inch) | 0.4375 |
| Length Of Cut (Inch) | 1.0000 |
| Short Description | 4FL REG FINE ROUGH TiALN FUTURA COATED |
| Series | E2079 |
| Weight | 0.0970 |
| Cut Type | End Cutting |
| Overall Length (mm) | 6.826 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.3750 |
| Coating | TiAIN F |
| Size | 7/16 x 3/8 x 1 x 2 11/16 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 9.53 mm |
