YG-1
72391CC

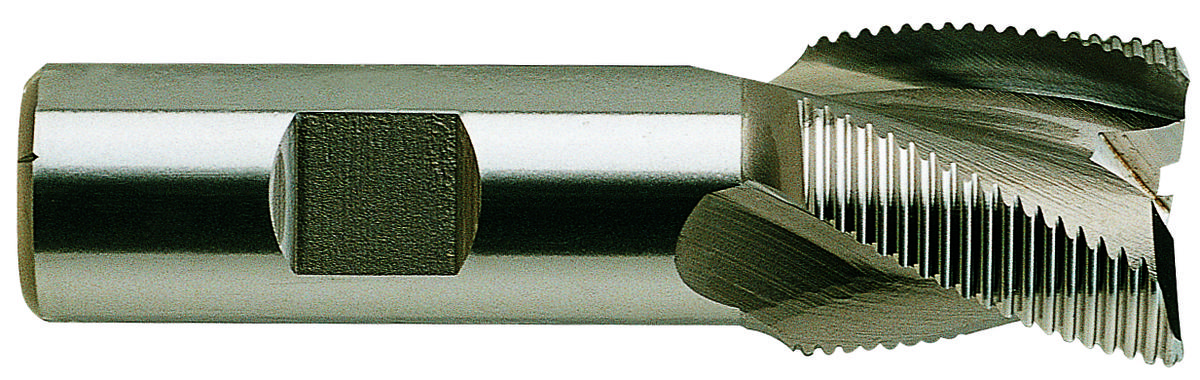

7/8 X 3/4 3FL. STUB. ROUGH. FINE PITCH, TICN COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 22.23 |
| Material | HSSCo8 |
| Diameter (Metric) | 22.23 |
| Overall Length (Inch) | 3.1250 |
| Type | HSSCo8 3 Flute Stub Length Fine Pitch Roughing Center Cutting |
| Diameter (Inch) | 0.8750 |
| Length Of Cut (Inch) | 0.8750 |
| Short Description | 3FL. STUB. ROUGH. FINE PITCH, TICN COATED |
| Series | E2086 |
| Weight | 0.3970 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 7.938 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiCN |
| Size | 7/8 x 3/4 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.91 cm |
