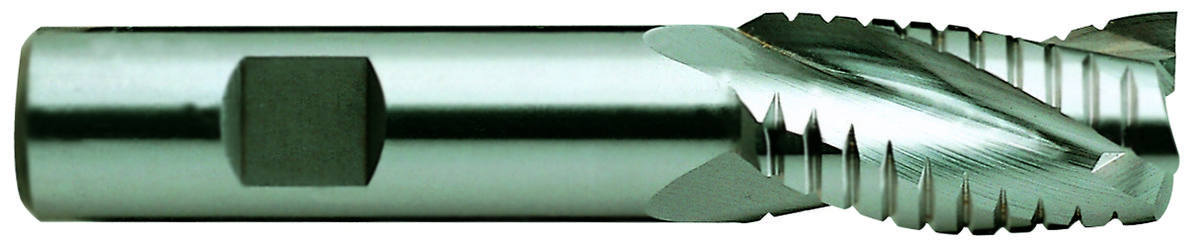

YG-1
73328CC
9/16 x 1/2 4FL.REG.R&F.TICN COATED.,M42
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 34.93 |
| Material | HSSCo8 |
| Diameter (Metric) | 14.29 |
| Overall Length (Inch) | 3.3750 |
| Type | HSSCo8 4 Flute Regular Length Roughing and Finishing |
| Diameter (Inch) | 0.5625 |
| Length Of Cut (Inch) | 1.3750 |
| Short Description | 4FL.REG.R&F.TICN COATED.,M42 |
| Series | E2248 |
| Weight | 0.2180 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 8.573 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.5000 |
| Coating | TiCN |
| Size | 9/16 x 1/2 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.27 cm |
