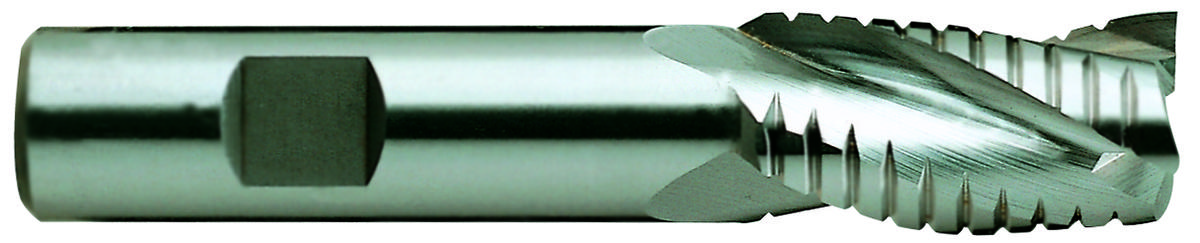

YG-1
73422CF
1 x 3/4 x 2 x 4 1/4 5FL REG SE R&F M42 TIALN FUTURA COATED
Specifications
| Number Of Flutes | 5 |
|---|---|
| Length Of Cut (Metric) | 50.80 |
| Material | HSSCo8 |
| Diameter (Metric) | 25.40 |
| Overall Length (Inch) | 4.2500 |
| Type | HSSCo8 5 Flute Regular Length Roughing and Finishing |
| Diameter (Inch) | 1.0000 |
| Length Of Cut (Inch) | 2.0000 |
| Short Description | 5FL REG SE R&F M42 TIALN FUTURA COATED |
| Series | E2248 |
| Weight | 0.6825 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 10.795 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiAIN F |
| Size | 1 x 3/4 x 2 x 4 1/4 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.91 cm |
