YG-1
76359CE

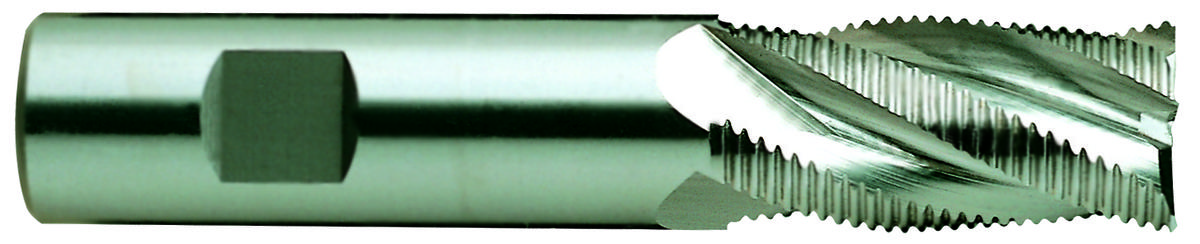

3/4 x 3/4 x 1 5/8 x 3 7/8 4FL REG CC FINE ROUGH M42 TiALN EXTREME COATED
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 41.28 |
| Material | HSSCo8 |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 3.8750 |
| Type | HSSCo8 4 Flute Regular Length Fine Pitch Roughing Center Cutting |
| Diameter (Inch) | 0.7500 |
| Length Of Cut (Inch) | 1.6250 |
| Short Description | 4FL REG CC FINE ROUGH M42 TiALN EXTREME COATED |
| Series | E2085 |
| Weight | 0.4420 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 9.843 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiAIN E |
| Size | 3/4 x 3/4 x 1 5/8 x 3 7/8 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 1.91 cm |
