YG-1
76394CF

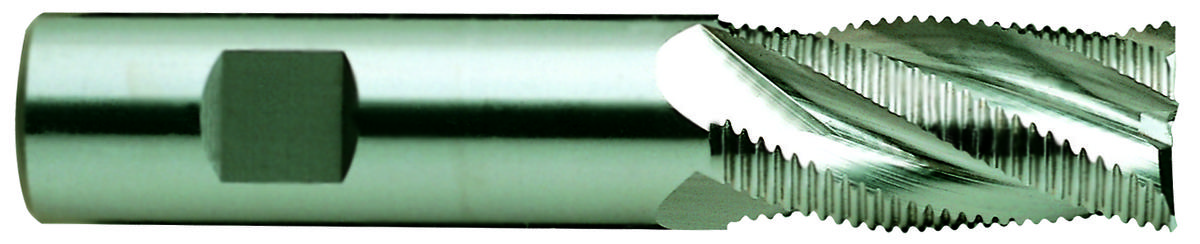

7/8 x 7/8 x 1 7/8 x 4 1/8 5FL REG CC FINE ROUGH M42 TiALN FUTURA COATED
Specifications
| Number Of Flutes | 5 |
|---|---|
| Length Of Cut (Metric) | 47.63 |
| Material | HSSCo8 |
| Diameter (Metric) | 22.23 |
| Overall Length (Inch) | 4.1250 |
| Type | HSSCo8 5 Flute Regular Length Fine Pitch Roughing Center Cutting |
| Diameter (Inch) | 0.8750 |
| Length Of Cut (Inch) | 1.8750 |
| Short Description | 5FL REG CC FINE ROUGH M42 TiALN FUTURA COATED |
| Series | E2085 |
| Weight | 0.6805 |
| Cut Type | Center Cutting |
| Overall Length (mm) | 10.478 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.8750 |
| Coating | TiAIN F |
| Size | 7/8 x 7/8 x 1 7/8 x 4 1/8 |
| Shank Style | Flat |
| Application | P |
| Shank Diameter (mm) | 2.22 cm |
