YG-1
80901PC

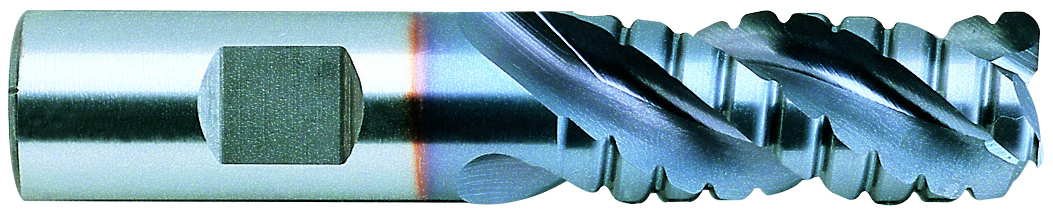

3/4 x 3/4 R.060 3FL.MED.SE.ROUGH.ALUM.T15.TICN-COATED
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 57.15 |
| Material | T15 |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 4.6250 |
| Diameter (Inch) | 0.7500 |
| Length Of Cut (Inch) | 2.2500 |
| Short Description | 3FL.MED.SE.ROUGH.ALUM.T15.TICN-COATED |
| Series | EK226 |
| Corner Radius (Metric) | 1.52 |
| Corner Radius (Fraction) | 3/50 |
| Weight | 0.5020 |
| Cut Type | Center Cut |
| Overall Length (mm) | 11.748 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Coating | TiCN |
| Size | 3/4 x 3/4 R.060 |
| Corner Radius (Inch) | 0.0600 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 1.91 cm |
