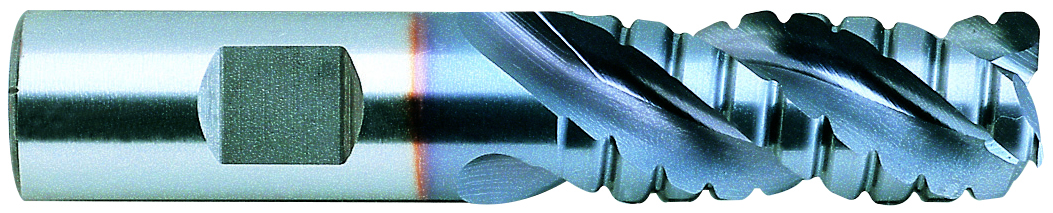

YG-1
80906
1 x 1 R.120 3FL. MED. SE. ROUGH. ALUM. T15
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 76.20 |
| Material | T15 |
| Diameter (Metric) | 25.40 |
| Overall Length (Inch) | 5.5000 |
| Diameter (Inch) | 1.0000 |
| Length Of Cut (Inch) | 3.0000 |
| Short Description | 3FL. MED. SE. ROUGH. ALUM. T15 |
| Series | EK226 |
| Corner Radius (Metric) | 3.05 |
| Corner Radius (Fraction) | 3/25 |
| Weight | 0.9970 |
| Cut Type | Center Cut |
| Overall Length (mm) | 13.97 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 1.0000 |
| Coating | Bright |
| Size | 1 x 1 R.120 |
| Corner Radius (Inch) | 0.1200 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 2.54 cm |
