YG-1
80907

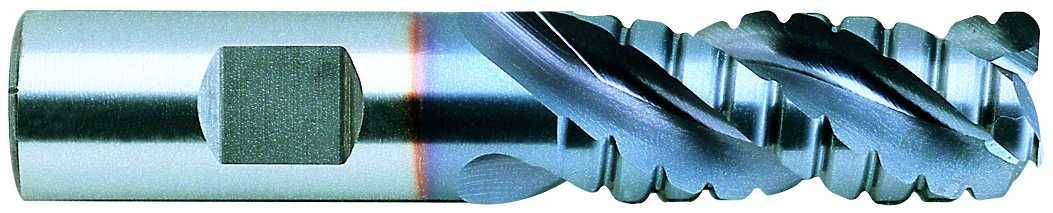

1-1/4x1-1/4.060 3FL.MED.R.060.ROUGH.ALUM.,T15
Specifications
| Number Of Flutes | 3 |
|---|---|
| Length Of Cut (Metric) | 76.20 |
| Material | T15 |
| Diameter (Metric) | 31.75 |
| Overall Length (Inch) | 5.5000 |
| Diameter (Inch) | 1.2500 |
| Length Of Cut (Inch) | 3.0000 |
| Short Description | 3FL.MED.R.060.ROUGH.ALUM.,T15 |
| Series | EK226 |
| Corner Radius (Metric) | 1.52 |
| Corner Radius (Fraction) | 3/50 |
| Weight | 1.5070 |
| Cut Type | Center Cut |
| Overall Length (mm) | 13.97 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 1.2500 |
| Coating | Bright |
| Size | 1-1/4x1-1/4.060 |
| Corner Radius (Inch) | 0.0600 |
| Shank Style | Flat |
| Application | N |
| Shank Diameter (mm) | 3.17 cm |
