YG-1
87560TF

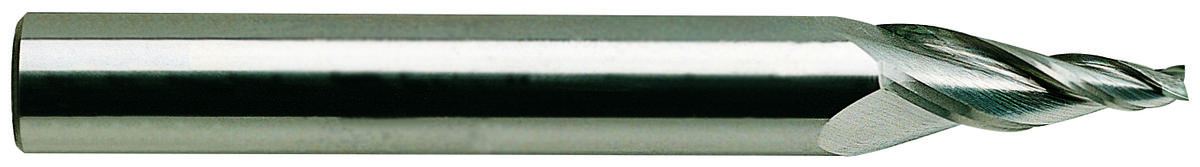

1/8 x 1/4 5 DEG 3FL.REG.TAPERED.CARB.,TIALN-FUTURA COATING
Specifications
| Diameter (Inch) | 1/8 |
|---|---|
| Number Of Flutes | 3 |
| Diameter (Metric) | 3.2 |
| Type | 3 FLUTE TAPER |
| Overall Length (Inch) | 3.0000 |
| Material | Carbide |
| Application | P |
| Coating | YG Tylon F |
| Series | E5077 |
| Short Description | 3FL.REG.TAPERED.CARB.,TIALN-FUTURA COATING |
| Weight | 0.0760 |
| Cut Type | Center |
| Length Of Cut (Inch) | 0.7500 |
| Overall Length (mm) | 7.62 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.2500 |
| Helix Angle | 30 |
| Diameter (Decimal) | 0.1250 |
| Size | 1/8 x 1/4 5 DEG |
| Shank Style | Plain |
| Length Of Cut (Metric) | 19.1 |
| Shank Diameter (mm) | 6.40 mm |
