YG-1
88564TF

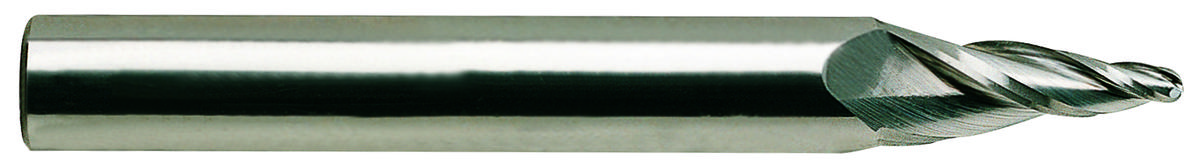

.062x1/4 7 DEG 3FL.REG.BALL.TAPERED.CARB.,TIALN-FUTURA COATING
Specifications
| Diameter (Inch) | 1/8 |
|---|---|
| Number Of Flutes | 3 |
| Diameter (Metric) | 3.2 |
| Type | FLUTE TAPER BALL NOSE |
| Overall Length (Inch) | 3.0000 |
| Material | Carbide |
| Application | P |
| Coating | YG Tylon F |
| Series | E5078 |
| Short Description | 3FL.REG.BALL.TAPERED.CARB.,TIALN-FUTURA COATING |
| Weight | 0.0790 |
| Cut Type | Center |
| Length Of Cut (Inch) | 0.5000 |
| Overall Length (mm) | 7.62 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.2500 |
| Helix Angle | 30 |
| Diameter (Decimal) | 0.1250 |
| Size | .062x1/4 7 DEG |
| Shank Style | Plain |
| Length Of Cut (Metric) | 12.7 |
| Shank Diameter (mm) | 6.40 mm |
