YG-1
88596

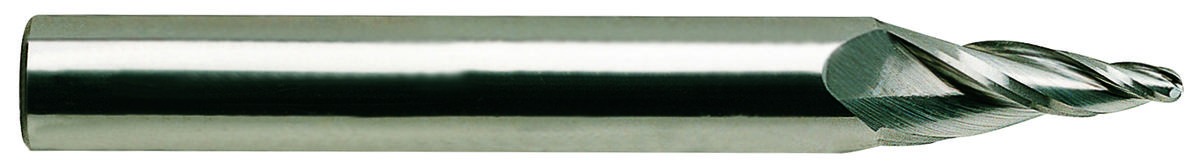

.125x1/2 3 DEG 3FL REG SE BALL TAPERED CARBIDE
Specifications
| Diameter (Inch) | 1/4 |
|---|---|
| Number Of Flutes | 3 |
| Diameter (Metric) | 6.4 |
| Type | FLUTE TAPER BALL NOSE |
| Overall Length (Inch) | 4.0000 |
| Material | Carbide |
| Application | P |
| Coating | Bright |
| Series | E5078 |
| Short Description | 3FL REG SE BALL TAPERED CARBIDE |
| Weight | 0.2820 |
| Cut Type | Center |
| Length Of Cut (Inch) | 2.0000 |
| Overall Length (mm) | 10.16 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.5000 |
| Helix Angle | 30 |
| Diameter (Decimal) | 0.2500 |
| Size | .125x1/2 3 DEG |
| Shank Style | Plain |
| Length Of Cut (Metric) | 50.8 |
| Shank Diameter (mm) | 1.27 cm |
