YG-1
89600

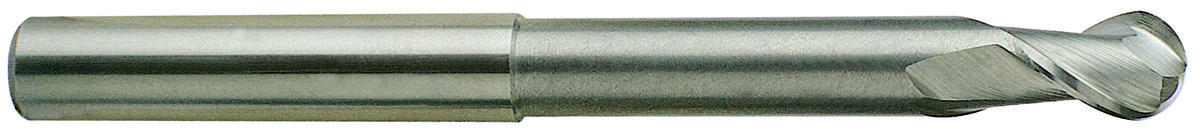

1x1x1 N.990 2FL H-37 BALL EXTENDED NECK ALU-POWER
Specifications
| Coating/Finish | Bright |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 7 |
| Length Of Cut (Inch) | 1 |
| Overall Length (Metric) | 177.8 |
| Cutting Direction | Right |
| Shank Size (Inch) | 3/4 |
| Material | Carbide |
| Length Of Cut (Metric) | 25.4 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/4 |
| Unit Of Measure | Fractional |
| Neck Diameter (Decimal) | 0.71 |
| Neck Diameter (Metric) | 18.03 |
| Short Description | 2FL H-37 BALL EXTENDED NECK ALU-POWER |
| Shank Diameter (Decimal) | 0.75 |
| Shank Diameter (Metric) | 19.05 |
| Application | N |
| Length of Cut | 1 Inch |
| Series | E5978 |
| Diameter | 3/4 Inch |
| Workpiece Material | Nonferrous Metal |
| Ball Nose Radius (Decimal) | 0.38 |
| Ball Nose Radius (Metric) | 9.53 |
| Ball Nose Radius (Fractional) | 3/8 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 4.25 |
| Length Below Shank (Metric) | 108 |
| Length Below Shank (Fractional) | 4-1/4 |
| Neck Diameter (Fractional) | 22/31 |
| Base Item Number | E5978 |
| Neck Diameter (Inch) | 0.71 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 1.7910 |
| Shank Diameter (Inch) | 0.7500 |
| Neck Diameter | 0.7100 |
| Size | 1x1x1 N.990 |
| Shank Style | Plain |
