YG-1
93125

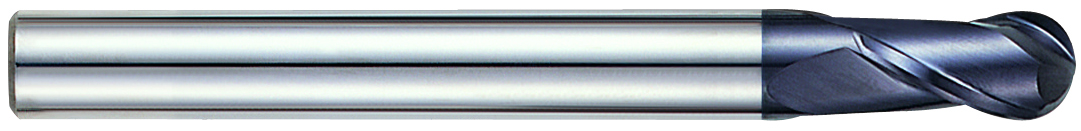

1/8 x 1/8 2FL LONG SE BALL X-POWER CARBIDE
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 3.18 |
| Overall Length (Inch) | 2-3/8 |
| Length Of Cut (Inch) | 5/16 |
| Overall Length (Metric) | 60.33 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Long Length Ball Nose |
| Shank Size (Inch) | 1/8 |
| Material | Carbide |
| Length Of Cut (Metric) | 7.94 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/8 |
| Unit Of Measure | Fractional |
| Short Description | 2FL LONG SE BALL X-POWER CARBIDE |
| Shank Diameter (Decimal) | 0.13 |
| Shank Diameter (Metric) | 3.18 |
| Application | P |
| Length of Cut | 5/16 Inch |
| Series | EM209 |
| Diameter | 1/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.06 |
| Ball Nose Radius (Metric) | 1.59 |
| Ball Nose Radius (Fractional) | 1/16 |
| Cut Type | Center Cut |
| Base Item Number | 2FL LONG SE BALL X-POWER CARBIDE |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0235 |
| Shank Diameter (Inch) | 0.1250 |
| Size | 1/8 x 1/8 |
| Shank Style | Plain |
