YG-1
93133

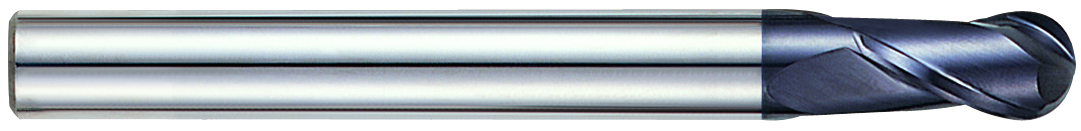

1 x 1 2FL LONG SE BALL X-POWER CARBIDE
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 25.4 |
| Overall Length (Inch) | 7-1/8 |
| Length Of Cut (Inch) | 2 |
| Overall Length (Metric) | 180.98 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Long Length Ball Nose |
| Shank Size (Inch) | 1 |
| Material | Carbide |
| Length Of Cut (Metric) | 50.8 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1 |
| Unit Of Measure | Fractional |
| Short Description | 2FL LONG SE BALL X-POWER CARBIDE |
| Shank Diameter (Decimal) | 1 |
| Shank Diameter (Metric) | 25.4 |
| Application | P |
| Length of Cut | 2 Inch |
| Series | EM209 |
| Diameter | 1 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.5 |
| Ball Nose Radius (Metric) | 12.7 |
| Ball Nose Radius (Fractional) | 1/2 |
| Cut Type | Center Cut |
| Base Item Number | 2FL LONG SE BALL X-POWER CARBIDE |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 2.5575 |
| Shank Diameter (Inch) | 1.0000 |
| Size | 1 X 1 |
| Shank Style | Plain |
