YG-1
93421

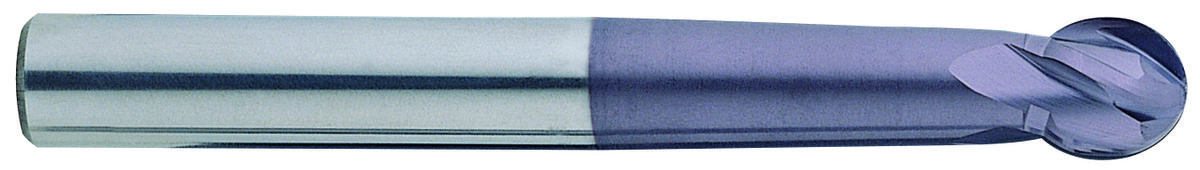

3/8 x 3/8 4FL LONG BALL SPHERE-TYPE X-POWER CARBIDE
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 9.53 |
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 3/10 |
| Overall Length (Metric) | 101.6 |
| Cutting Direction | Right |
| Shank Size (Inch) | 3/8 |
| Material | Carbide |
| Length Of Cut (Metric) | 7.62 |
| Number Of Flutes | 4 |
| Diameter (Inch) | 3/8 |
| Unit Of Measure | Fractional |
| Neck Diameter (Decimal) | 0.30 |
| Neck Diameter (Metric) | 7.62 |
| Short Description | 4FL LONG BALL SPHERE-TYPE X-POWER CARBIDE |
| Shank Diameter (Decimal) | 0.38 |
| Shank Diameter (Metric) | 9.53 |
| Application | P |
| Length of Cut | 3/10 Inch |
| Neck Diameter (Fraction) | 3/10 |
| Series | EM097 |
| Diameter | 3/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.19 |
| Ball Nose Radius (Metric) | 4.76 |
| Ball Nose Radius (Fractional) | 3/16 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 1.63 |
| Length Below Shank (Metric) | 41.28 |
| Length Below Shank (Fractional) | 1-5/8 |
| Neck Diameter (Fractional) | 3/10 |
| Base Item Number | 4FL LONG BALL SPHERE-TYPE X-POWER CARBIDE |
| Neck Diameter (Inch) | 0.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.2220 |
| Shank Diameter (Inch) | 0.3750 |
| Size | 3/8 X 3/8 |
| Shank Style | Plain |
