YG-1
93428

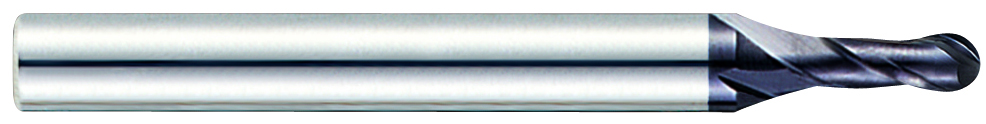

1.0 x 3 x 2.5 x 40 2FL MINI BALL METRIC.X-POWER CARBIDE
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1 |
| Overall Length (Inch) | 1-23/40 |
| Length Of Cut (Inch) | 6/61 |
| Overall Length (Metric) | 40 |
| Cutting Direction | Right |
| Shank Size (Metric) | 3 |
| Type | Carbide, 2 Flute Miniature Ball Nose |
| Material | Carbide |
| Length Of Cut (Metric) | 2.5 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/76 |
| Unit Of Measure | Metric |
| Short Description | 2FL MINI BALL METRIC.X-POWER CARBIDE |
| Shank Diameter (Fractional) | 2/17 |
| Shank Diameter (Decimal) | 0.12 |
| Application | P |
| Length of Cut | 2.50 mm |
| Series | EM865 |
| Diameter | 1 mm |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.02 |
| Ball Nose Radius (Metric) | 0.5 |
| Ball Nose Radius (Fractional) | 1/51 |
| Cut Type | Center Cut |
| Base Item Number | 2FL MINI BALL METRIC.X-POWER CARBIDE |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0195 |
| Shank Diameter (Inch) | 0.1181 |
| Size | 1.0 x 3 x 2.5 x 40 |
| Shank Style | Plain |
