YG-1
93513

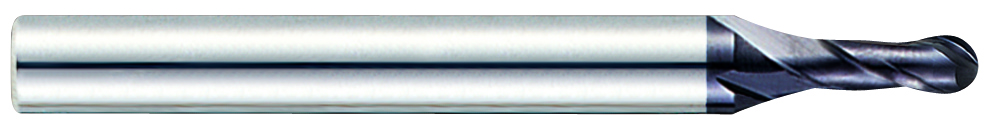

0.047 x 1/8 R.0235 2FL H-30 BALL MINIATURE X-POWER
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.19 |
| Overall Length (Inch) | 1-1/2 |
| Length Of Cut (Inch) | 2/17 |
| Overall Length (Metric) | 38.1 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Miniature Ball Nose |
| Shank Size (Inch) | 1/8 |
| Material | Carbide |
| Length Of Cut (Metric) | 3 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 4/85 |
| Unit Of Measure | Fractional |
| Short Description | 2FL H-30 BALL MINIATURE X-POWER |
| Shank Diameter (Decimal) | 0.13 |
| Shank Diameter (Metric) | 3.18 |
| Application | P |
| Length of Cut | 2/17 Inch |
| Series | EM960 |
| Diameter | 4/85 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.02 |
| Ball Nose Radius (Metric) | 0.6 |
| Ball Nose Radius (Fractional) | 2/85 |
| Cut Type | Center Cut |
| Base Item Number | 2FL H-30 BALL MINIATURE X-POWER |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0155 |
| Shank Diameter (Inch) | 0.1250 |
| Size | 0.047 x 1/8 R.0235 |
| Shank Style | Plain |
