YG-1
93539

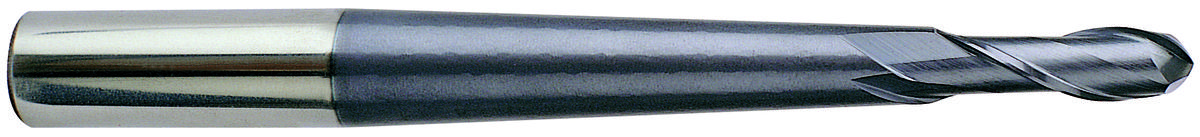

5/16x1/2x3/4x6 2FL H-30 PENCIL NECK BALL X-POWER
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 7.94 |
| Overall Length (Inch) | 6 |
| Length Of Cut (Inch) | 3/4 |
| Overall Length (Metric) | 152.4 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Ball Nose with Pencil Neck |
| Shank Size (Inch) | 1/2 |
| Material | Carbide |
| Length Of Cut (Metric) | 19.05 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 5/16 |
| Unit Of Measure | Fractional |
| Short Description | 2FL H-30 PENCIL NECK BALL X-POWER |
| Shank Diameter (Decimal) | 0.5 |
| Shank Diameter (Metric) | 12.7 |
| Application | P |
| Length of Cut | 3/4 Inch |
| Series | EM979 |
| Diameter | 5/16 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.16 |
| Ball Nose Radius (Metric) | 3.97 |
| Ball Nose Radius (Fractional) | 5/32 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 3.94 |
| Length Below Shank (Metric) | 100.01 |
| Length Below Shank (Fractional) | 3-15/16 |
| Base Item Number | 2FL H-30 PENCIL NECK BALL X-POWER |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.4600 |
| Shank Diameter (Inch) | 0.5000 |
| Size | 5/16x1/2x3/4x6 |
| Shank Style | Plain |
