YG-1
93565

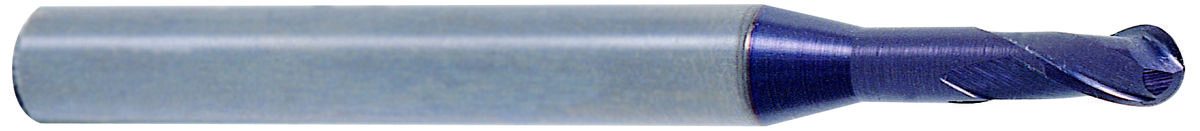

3/64x1/8 E7/32 N.045 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.19 |
| Overall Length (Inch) | 2 |
| Length Of Cut (Inch) | 1/16 |
| Overall Length (Metric) | 50.8 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Ball Nose for Rib Processing |
| Shank Size (Inch) | 1/8 |
| Material | Carbide |
| Length Of Cut (Metric) | 1.59 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/64 |
| Unit Of Measure | Fractional |
| Neck Diameter (Decimal) | 0.05 |
| Neck Diameter (Metric) | 1.14 |
| Short Description | 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING |
| Shank Diameter (Decimal) | 0.13 |
| Shank Diameter (Metric) | 3.18 |
| Application | P |
| Length of Cut | 1/16 Inch |
| Neck Diameter (Fraction) | 4/89 |
| Series | EM967 |
| Diameter | 3/64 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.02 |
| Ball Nose Radius (Metric) | 0.59 |
| Ball Nose Radius (Fractional) | 1/43 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.22 |
| Length Below Shank (Metric) | 5.56 |
| Length Below Shank (Fractional) | 7/32 |
| Neck Diameter (Fractional) | 4/89 |
| Base Item Number | 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0195 |
| Shank Diameter (Inch) | 0.1250 |
| Size | 3/64x1/8 E7/32 N.045 |
| Shank Style | Plain |
