YG-1
93577

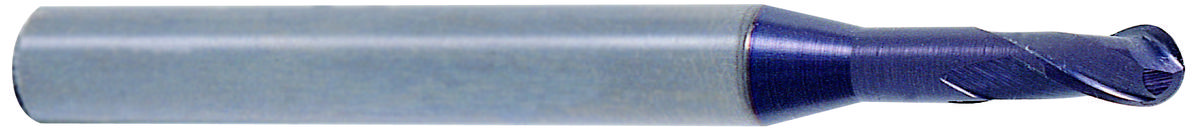

1/8x1/4 E3/4 N.120 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 3.18 |
| Overall Length (Inch) | 2-1/4 |
| Length Of Cut (Inch) | 3/16 |
| Overall Length (Metric) | 57.15 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Ball Nose for Rib Processing |
| Shank Size (Inch) | 1/4 |
| Material | Carbide |
| Length Of Cut (Metric) | 4.76 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/8 |
| Unit Of Measure | Fractional |
| Neck Diameter (Decimal) | 0.12 |
| Neck Diameter (Metric) | 3.05 |
| Short Description | 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING |
| Shank Diameter (Decimal) | 0.25 |
| Shank Diameter (Metric) | 6.35 |
| Application | P |
| Length of Cut | 3/16 Inch |
| Neck Diameter (Fraction) | 3/25 |
| Series | EM967 |
| Diameter | 1/8 Inch |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.06 |
| Ball Nose Radius (Metric) | 1.59 |
| Ball Nose Radius (Fractional) | 1/16 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.75 |
| Length Below Shank (Metric) | 19.05 |
| Length Below Shank (Fractional) | 3/4 |
| Neck Diameter (Fractional) | 3/25 |
| Base Item Number | 2FL H-30 REG BALL X-POWER FOR RIB PROCESSING |
| Neck Diameter (Inch) | 0.12 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0485 |
| Shank Diameter (Inch) | 0.2500 |
| Size | 1/8x1/4 E3/4 N.120 |
| Shank Style | Plain |
