YG-1
95104

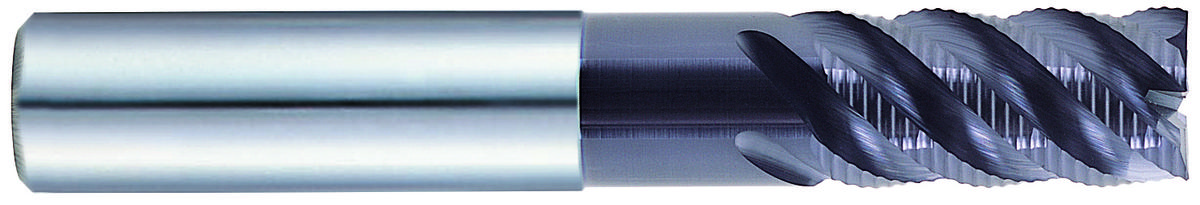

1/2 x 1/2 N.480 4FL LONG REACH H-45 NECK ROUGH JET-POWER
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 25.40 |
| Material | Carbide |
| Diameter (Metric) | 12.70 |
| Overall Length (Inch) | 3.0000 |
| Diameter (Inch) | 0.5000 |
| Length Of Cut (Inch) | 1.0000 |
| Short Description | 1/2 x 1/2 N.480 |
| Series | EH970 |
| Weight | 0.2660 |
| Cut Type | Center Cut |
| Overall Length (mm) | 7.62 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.5000 |
| Length Below Shank (Metric) | 38.1 |
| Neck Diameter (Metric) | 12.19 |
| Coating | TiALN |
| Neck Diameter (Fraction) | 12/25 |
| Shank Style | Plain |
| Application | P,M,S |
| Shank Diameter (mm) | 1.27 cm |
| Neck Diameter (Inch) | 0.48 |
