YG-1
95106

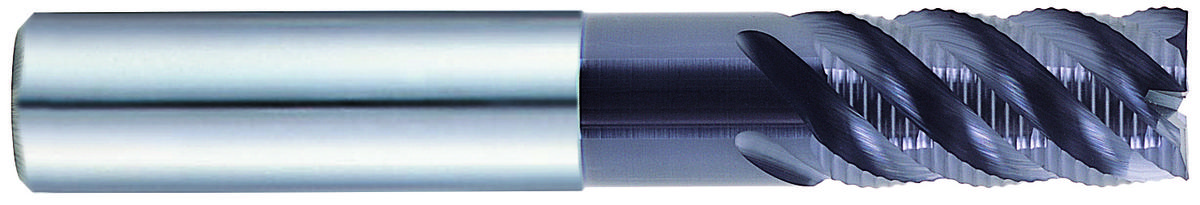

3/4 x 3/4 N.719 6FL LONG REACH H-45 NECK ROUGH JET-POWER
Specifications
| Number Of Flutes | 6 |
|---|---|
| Length Of Cut (Metric) | 41.28 |
| Material | Carbide |
| Diameter (Metric) | 19.05 |
| Overall Length (Inch) | 4.3750 |
| Diameter (Inch) | 0.7500 |
| Length Of Cut (Inch) | 1.6250 |
| Short Description | 3/4 x 3/4 N.719 |
| Series | EH970 |
| Weight | 0.8750 |
| Cut Type | Center Cut |
| Overall Length (mm) | 11.113 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.7500 |
| Length Below Shank (Metric) | 60.3 |
| Neck Diameter (Metric) | 18.26 |
| Coating | TiALN |
| Neck Diameter (Fraction) | 23/32 |
| Shank Style | Plain |
| Application | P,M,S |
| Shank Diameter (mm) | 1.91 cm |
| Neck Diameter (Inch) | 0.72 |
