YG-1
99576

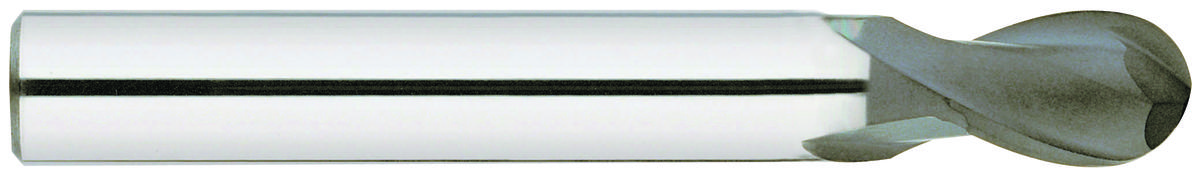

1/4 x 1/4 x 3/4 x 2-1/2 2FL REG SE BALL CARBIDE DIAMOND COATED
Specifications
| Coating/Finish | Diamond |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 6.35 |
| Overall Length (Inch) | 2-1/2 |
| Length Of Cut (Inch) | 3/4 |
| Overall Length (Metric) | 63.5 |
| Cutting Direction | Right |
| Type | Carbide, 2 Flute Regular Length Ball Nose Inch Diamond Coated |
| Shank Size (Inch) | 1/4 |
| Material | Carbide |
| Length Of Cut (Metric) | 19.05 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/4 |
| Unit Of Measure | Fractional |
| Short Description | 2FL REG SE BALL CARBIDE DIAMOND COATED |
| Shank Diameter (Decimal) | 0.25 |
| Shank Diameter (Metric) | 6.35 |
| Application | N |
| Length of Cut | 3/4 Inch |
| Series | El099 |
| Diameter | 1/4 Inch |
| Workpiece Material | Nonferrous Metal |
| Ball Nose Radius (Decimal) | 0.13 |
| Ball Nose Radius (Metric) | 3.18 |
| Ball Nose Radius (Fractional) | 1/8 |
| Cut Type | Center Cut |
| Base Item Number | 2FL REG SE BALL CARBIDE DIAMOND COATED |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0570 |
| Shank Diameter (Inch) | 0.2500 |
| Size | 1/4 x 1/4 x 3/4 x 2-1/2 |
| Shank Style | Plain |
