YG-1
D1191130

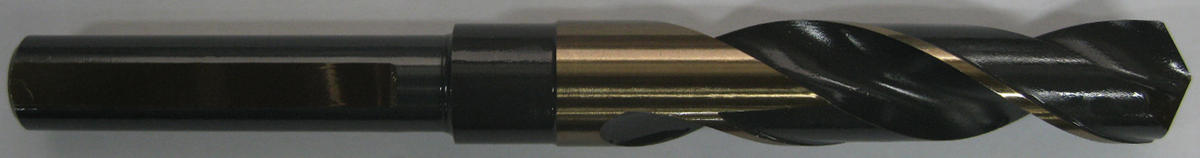

1-15/32 x 1/2 x 3 x 6 HSS(M2) 118 DEGREE SPLIT POINT 3 FLAT GOLD & BLACK S & D DRILL
Specifications
| Material | HSS |
|---|---|
| Point Angle | 118 |
| Cutting Direction | Right |
| Diameter (Inch) | 1.4688 |
| Diameter (Metric) | 37.31 |
| Short Description | HSS(M2) 118 DEGREE SPLIT POINT 3 FLAT GOLD & BLACK S & D DRILL |
| Drill Point Angle | 118 |
| Overall Length (mm) | 15.24 cm |
| Flute Length (mm) | 7.62 cm |
| Weight | 1.3560 |
| Shank Diameter (Inch) | 0.5000 |
| Blank Standard | ANSI |
| Point Length (in) | 0.4413 |
| Helix Angle | 33 |
| Size | 1-15/32 x 1/2 x 3 x 6 |
| Series | D1191 |
| Point Length (Metric) | 11.21 |
| Application | P |
| Shank Diameter (mm) | 1.27 cm |
| Hole Tolerance | h8 |
| Overall Length (Inch) | 6.0000 |
