YG-1
D1211046

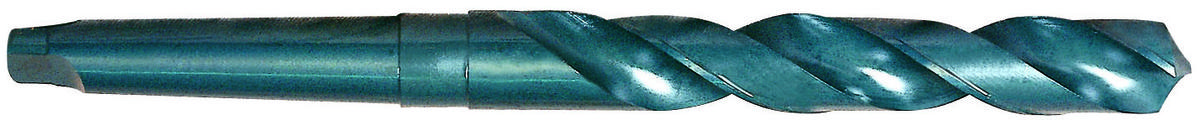

23/32 x 5-5/8 x 9-1/2 x MT#2 HSS(M2) MORSE TAPER SHANK TWIST DRILLS
Specifications
| Diameter (Inch) | 0.7188 |
|---|---|
| Material | HSS |
| Number Of Flutes | 2 |
| Type | HSS(M2) Morse Taper Shank Twist Drill |
| Diameter (Metric) | 18.26 |
| Cutting Direction | Right |
| Point Angle | 118 |
| Drill Point Angle | 118 |
| Flute Length (mm) | 14.288 cm |
| Weight | 0.7075 |
| Overall Length (Decimal Inch) | 9.5 |
| Overall Length (mm) | 24.13 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.2159 |
| Helix Angle | 33 |
| Size | 23/32 x 5-5/8 x 9-1/2 x MT#2 |
| Point Length (Metric) | 5.48 |
| Application | P |
| Hole Tolerance | h8 |
