YG-1
D1211060

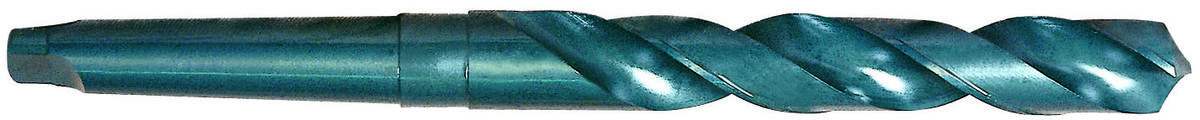

15/16 x 6-1/8 x 10-3/4 x MT#3 HSS(M2) MORSE TAPER SHANK TWIST DRILLS
Specifications
| Diameter (Inch) | 0.9375 |
|---|---|
| Material | HSS |
| Number Of Flutes | 2 |
| Type | HSS(M2) Morse Taper Shank Twist Drill |
| Diameter (Metric) | 23.81 |
| Cutting Direction | Right |
| Point Angle | 118 |
| Drill Point Angle | 118 |
| Flute Length (mm) | 15.558 cm |
| Weight | 1.3855 |
| Overall Length (Decimal Inch) | 10.75 |
| Overall Length (mm) | 27.305 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.2817 |
| Helix Angle | 33 |
| Size | 15/16 x 6-1/8 x 10-3/4 x MT#3 |
| Point Length (Metric) | 7.15 |
| Application | P |
| Hole Tolerance | h8 |
