YG-1
D1211224

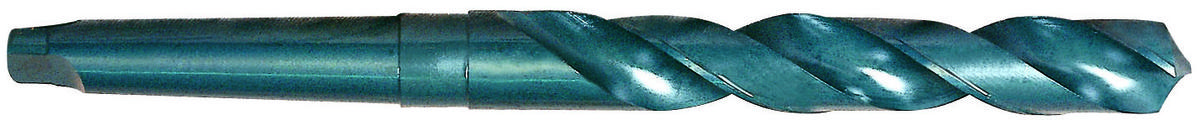

2-3/8 x 10-1/8 x 17-3/8 x MT#5 HSS(M2) MORSE TAPER SHANK TWIST DRILLS
Specifications
| Diameter (Inch) | 2.3750 |
|---|---|
| Material | HSS |
| Number Of Flutes | 2 |
| Type | HSS(M2) Morse Taper Shank Twist Drill |
| Diameter (Metric) | 60.33 |
| Cutting Direction | Right |
| Point Angle | 118 |
| Drill Point Angle | 118 |
| Flute Length (mm) | 25.718 cm |
| Weight | 11.4595 |
| Overall Length (Decimal Inch) | 17.375 |
| Overall Length (mm) | 44.133 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.7135 |
| Helix Angle | 33 |
| Size | 2-3/8 x 10-1/8 x 17-3/8 x MT#5 |
| Point Length (Metric) | 18.12 |
| Application | P |
| Hole Tolerance | h8 |
