YG-1
D1C90141

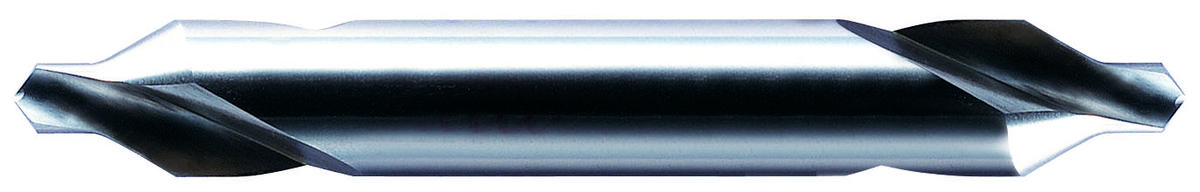

3/64 x 1/8 x 3/64 x 1-1/4 HSS(M2) 60 DEG REGULAR LENGTH CENTER DRILL
Specifications
| Type | HSS (M2) 60 Degree Regular Length Center Drill |
|---|---|
| Overall Length (Inch) | 1.2500 |
| Number Of Flutes | 2 |
| Material | HSS (M2) |
| Point Angle | 120 |
| Short Description | HSS(M2) 60 DEG REGULAR LENGTH CENTER DRILL |
| Cutting Direction | Right |
| Point Length (Metric) | 0.34 |
| Size | 3/64 x 1/8 x 3/64 x 1-1/4 |
| Pilot Diameter (Fraction) | 3/64 |
| Weight | 0.0073 |
| Overall Length (mm) | 3.175 cm |
| Shank Diameter (Inch) | 0.1250 |
| Point Length (in) | 0.0135 |
| Shank Tolerance | h8 |
| Pilot Length (Metric) | 1.19 |
| Series | D1C90 |
| Application | P |
| Shank Diameter (mm) | 3.18 mm |
| Pilot Diameter (Inch) | 0.0469 |
| Hole Tolerance | k12 |
| Pilot Diameter (Metric) | 1.19 |
