YG-1
D4107039

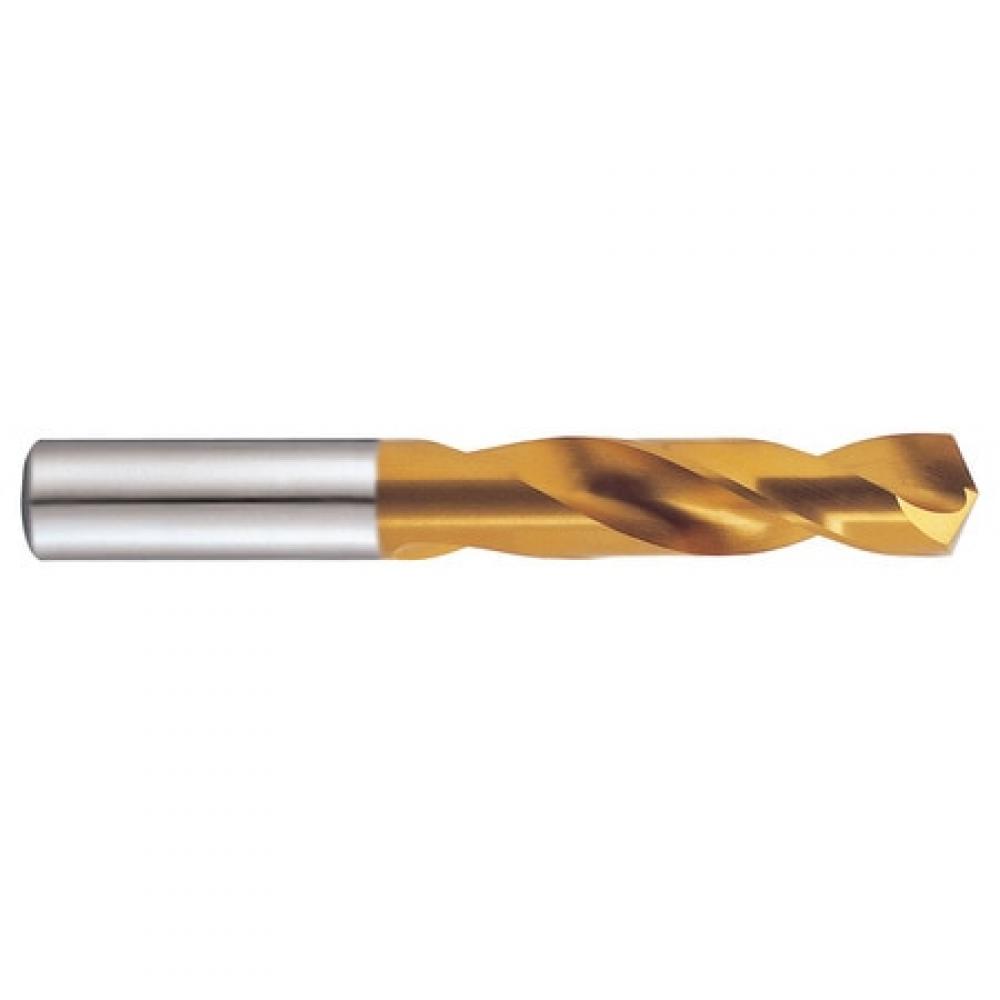

3.9 x 22 x 55 HSS(M42) STUB LENGTH DIN1897 SPLIT POINT DRILLS TIN COATED (5PCS)
Specifications
| Diameter (Metric) | 3.90 |
|---|---|
| Type | HSS Co8, Straight Shank Screw Machine |
| Material | HSS Co8 |
| Diameter (Inch) | 0.1535 |
| Short Description | HSS(M42) STUB LENGTH DIN1897 SPLIT POINT DRILLS TIN COATED (5PCS) |
| Cutting Direction | Right Hand |
| Point Angle | 135 |
| Drill Point Angle | 135 |
| Series | D4107 |
| Drill Point Length (Metric) | 0.81 |
| Blank Standard | DIN 1897 |
| Helix Angle | 33 |
| Hole Tolerance | h8 |
| Point Length (Metric) | 0.81 |
| Flute Length (mm) | 2.2 cm |
| Overall Length (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 5.5 cm |
| Shank Diameter (Inch) | 0.1535 |
| Point Length (in) | 0.0318 |
| Size | 3.9 x 22 x 55 |
| Application | P |
| Shank Diameter (mm) | 3.90 mm |
