YG-1
D4146024

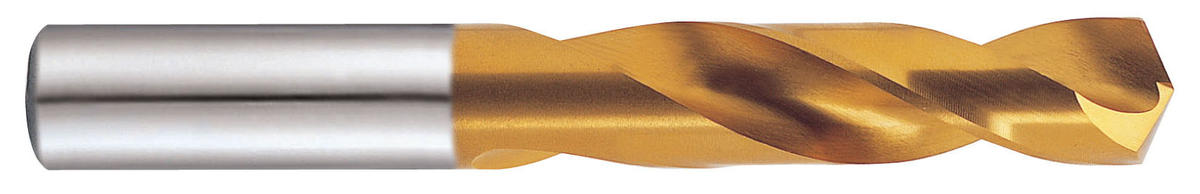

3/8 x 1-13/16 x 3-1/8 HSS(M42) SCREW MACHINE DRILL TIN COATED (5PCS)
Specifications
| Diameter (Inch) | 0.3750 |
|---|---|
| Diameter (Metric) | 9.53 |
| Flute Length (Inch) | 1.8125 |
| Point Angle | 135 |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Short Description | HSS(M42) SCREW MACHINE DRILL TIN COATED (5PCS) |
| Flute Length (mm) | 4.604 cm |
| Overall Length (Decimal Inch) | 3.125 |
| Overall Length (mm) | 7.938 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.0777 |
| Helix Angle | 25 |
| Type | HSS Co8, Straight Shank Screw Machine |
| Size | 3/8 x 1-13/16 x 3-1/8 |
| Series | D4146 |
| Drill Point Length (Metric) | 1.97 |
| Point Length (Metric) | 1.97 |
| Application | P |
| Shank Diameter (mm) | 9.53 mm |
| Hole Tolerance | ANSI |
| Drill Point Angle | 135 |
