YG-1
D4148109

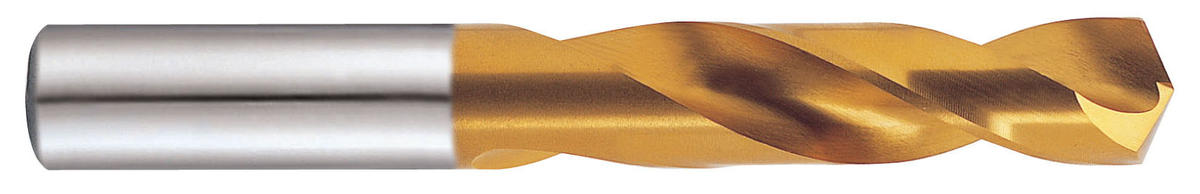

.1960 x 1-3/16 x 2-1/4 HSS(M42) SCREW MACHINE DRILL TIN COATED (5PCS)
Specifications
| Diameter (Inch) | 0.1960 |
|---|---|
| Diameter (Metric) | 4.98 |
| Flute Length (Inch) | 1.1875 |
| Point Angle | 135 |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Short Description | HSS(M42) SCREW MACHINE DRILL TIN COATED (5PCS) |
| Flute Length (mm) | 3.016 cm |
| Overall Length (Decimal Inch) | 2.25 |
| Overall Length (mm) | 5.715 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.0406 |
| Helix Angle | 25 |
| Type | HSS Co8, Straight Shank Screw Machine |
| Size | .1960 x 1-3/16 x 2-1/4 |
| Series | D4148 |
| Drill Point Length (Metric) | 1.03 |
| Point Length (Metric) | 1.03 |
| Application | P |
| Shank Diameter (mm) | 4.98 mm |
| Hole Tolerance | ANSI |
| Drill Point Angle | 135 |
