YG-1
D4148145

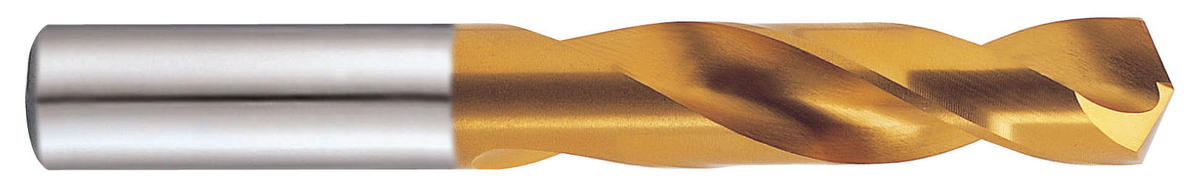

.0820 x 3/4 x 1-3/4 HSS(M42) SCREW MACHINE DRILL TIN COATED (10PCS)
Specifications
| Diameter (Inch) | 0.0820 |
|---|---|
| Diameter (Metric) | 2.08 |
| Point Angle | 135 |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Short Description | HSS(M42) SCREW MACHINE DRILL TIN COATED (10PCS) |
| Flute Length (mm) | 1.905 cm |
| Overall Length (Decimal Inch) | 1.75 |
| Overall Length (mm) | 4.445 cm |
| Blank Standard | ANSI |
| Point Length (in) | 0.0170 |
| Helix Angle | 25 |
| Type | HSS Co8, Straight Shank Screw Machine |
| Size | .0820 x 3/4 x 1-3/4 |
| Series | D4148 |
| Drill Point Length (Metric) | 0.43 |
| Point Length (Metric) | 0.43 |
| Application | P |
| Shank Diameter (mm) | 2.08 mm |
| Hole Tolerance | ANSI |
| Drill Point Angle | 135 |
