YG-1
DLGP512201

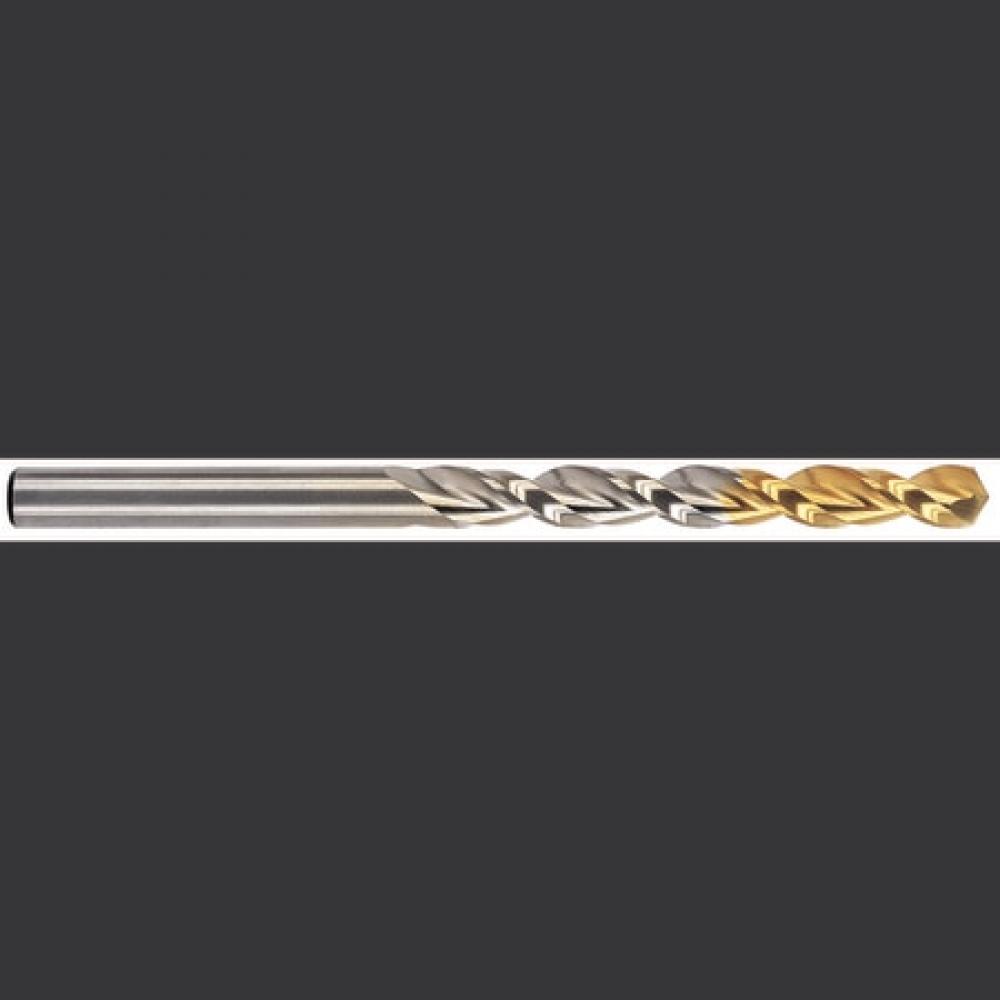

#47 x 1 x 2 HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES (10PCS)
Specifications
| Number Of Flutes | 2 |
|---|---|
| Diameter (Inch) | 0.0785 |
| Material | HSS Co5 |
| Diameter (Metric) | 1.99 |
| Type | HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated |
| Short Description | HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES (10PCS) |
| Cutting Direction | Right |
| Point Angle | 130 |
| Helix Angle | 38 |
| Point Length (Metric) | 0.46 |
| Wire Size | #47 |
| Flute Length (mm) | 2.54 cm |
| Overall Length (Decimal Inch) | 2 |
| Overall Length (mm) | 5.08 cm |
| Shank Diameter (Inch) | 0.0785 |
| Blank Standard | ANSI |
| Point Length (in) | 0.0183 |
| Size | #47 x 1 x 2 |
| Drill Point Length (Metric) | 0.46 |
| Application | P |
| Shank Diameter (mm) | 1.99 mm |
| Hole Tolerance | h8 |
