YG-1
E2F64913

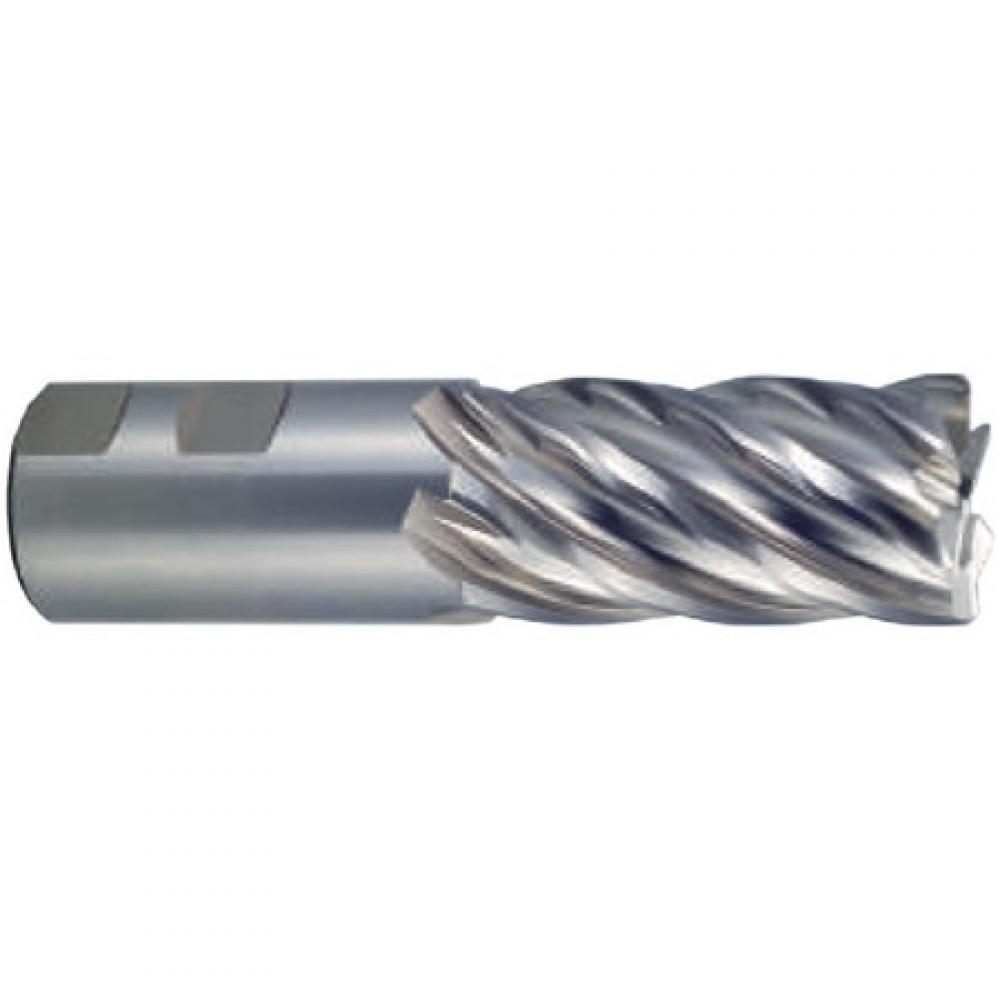

1-1/2 x 1-1/4 x 3 x 5-1/2 (.040) 6FL H-30 CC COBALT SINE-POWER END MILL
Specifications
| Length Of Cut (Inch) | 3.0000 |
|---|---|
| Material | HSSCo8 |
| Type | HSSCo8, 6 Flute |
| Length Of Cut (Metric) | 76.20 |
| Coating/Finish | Bright |
| Number Of Flutes | 6 |
| Cutting Direction | Right |
| Short Description | 6FL H-30 CC COBALT SINE-POWER END MILL |
| Shank Type | Flat |
| Series | E2F64 |
| Diameter (Metric) | 38.10 |
| Shank Style | Flat |
| Application | S |
| Weight | 1.9215 |
| Cut Type | Center Cut |
| Overall Length (Decimal Inch) | 5.5 |
| Overall Length (mm) | 13.97 cm |
| Chamfer Size (Metric) | 1.02 |
| Size | 1-1/2 x 1-1/4 x 3 x 5-1/2 (.040) |
| Diameter (Inch) | 1.5000 |
| Shank Diameter (mm) | 3.17 cm |
