YG-1
E9992020TF

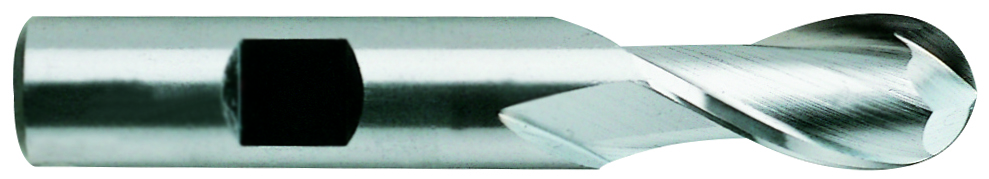

5/16 x 3/8 x 9/16 x 2 5/16 2FL SE BALL TANK POWER TIALN FUTURA COATING
Specifications
| Coating/Finish | TiALN |
|---|---|
| Shank Type | Flat |
| Diameter (Metric) | 7.94 |
| Overall Length (Inch) | 2-5/16 |
| Length Of Cut (Inch) | 9/16 |
| Overall Length (Metric) | 58.74 |
| Cutting Direction | Right |
| Type | Premium HSS-PM 2 Flute Regular Length Ball Nose |
| Shank Size (Inch) | 3/8 |
| Material | Premium HSS-PM |
| Length Of Cut (Metric) | 14.29 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 5/16 |
| Unit Of Measure | Fractional |
| Short Description | 2FL SE BALL TANK POWER TIALN FUTURA COATING |
| Shank Diameter (Decimal) | 0.38 |
| Shank Diameter (Metric) | 9.53 |
| Application | P, M, K |
| Length of Cut | 9/16 Inch |
| Series | E9992 |
| Diameter | 5/16 Inch |
| Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Ball Nose Radius (Decimal) | 0.16 |
| Ball Nose Radius (Metric) | 3.97 |
| Ball Nose Radius (Fractional) | 5/32 |
| Cut Type | Center Cut |
| Base Item Number | 2FL SE BALL TANK POWER TIALN FUTURA COATING |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Weight | 0.0760 |
| Shank Diameter (Inch) | 0.3750 |
| Size | 5/16 x 3/8 x 9/16 x 2 5/16 |
| Shank Style | Flat |
