YG-1
EE515100

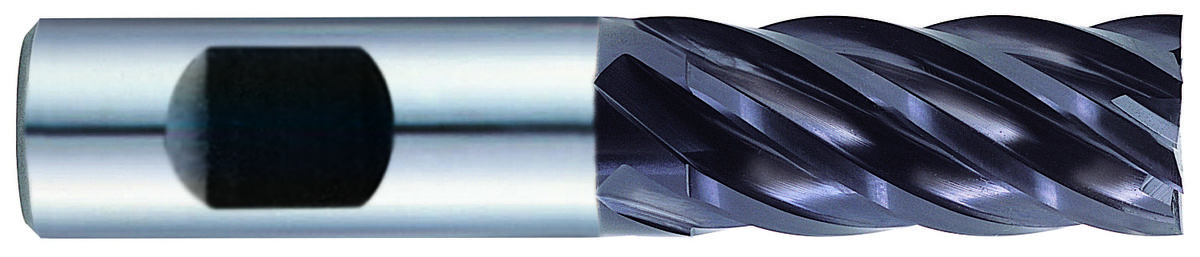

10.0 x 10 x 22 x 72 4FL REG SE H-30 ASP60 METRIC JET POWER
Specifications
| Number Of Flutes | 4 |
|---|---|
| Length Of Cut (Metric) | 22.00 |
| Material | Premium HSS-PM |
| Diameter (Metric) | 10.00 |
| Overall Length (Inch) | 2.8346 |
| Diameter (Inch) | 0.3937 |
| Length Of Cut (Inch) | 0.8661 |
| Short Description | 10.0 x 10 x 22 x 72 |
| Series | EE515 |
| Weight | 0.1035 |
| Cut Type | Center Cut |
| Overall Length (mm) | 7.2 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.3937 |
| Coating | TiALN |
| Shank Style | Flat |
| Application | P,M,S |
| Shank Diameter (mm) | 1.00 cm |
