YG-1
EI880030

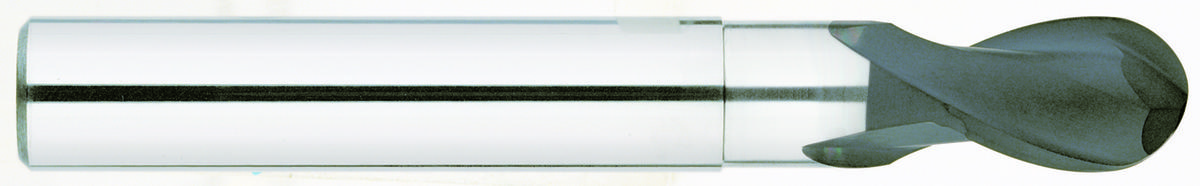

3.0 x 6 x 4.5 x 60 R1.5 N2.8 2FL SHORT BALL NOSE D-POWER EM
Specifications
| Coating/Finish | Diamond |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 3 |
| Overall Length (Inch) | 2-25/69 |
| Length Of Cut (Inch) | 14/79 |
| Overall Length (Metric) | 60 |
| Cutting Direction | Right |
| Shank Size (Metric) | 6 |
| Type | Carbide, 2 Flute Short Length Ball Nose Metric Diamond Coated |
| Material | Carbide |
| Length Of Cut (Metric) | 4.5 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 2/17 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.11 |
| Neck Diameter (Metric) | 2.8 |
| Short Description | 2FL SHORT BALL NOSE D-POWER EM |
| Shank Diameter (Fractional) | 13/55 |
| Shank Diameter (Decimal) | 0.24 |
| Application | N |
| Length of Cut | 4.50 mm |
| Neck Diameter (Fraction) | 1/9 |
| Series | El880 |
| Diameter | 3 mm |
| Workpiece Material | Nonferrous Metal |
| Ball Nose Radius (Decimal) | 0.06 |
| Ball Nose Radius (Metric) | 1.5 |
| Ball Nose Radius (Fractional) | 1/17 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.26 |
| Length Below Shank (Metric) | 6.5 |
| Length Below Shank (Fractional) | 11/43 |
| Neck Diameter (Fractional) | 1/9 |
| Base Item Number | 2FL SHORT BALL NOSE D-POWER EM |
| Neck Diameter (Inch) | 0.11 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0500 |
| Shank Diameter (Inch) | 0.2362 |
| Size | 3.0 x 6 x 4.5 x 60 R1.5 N2.8 |
| Shank Style | Plain |
