YG-1
EM819921

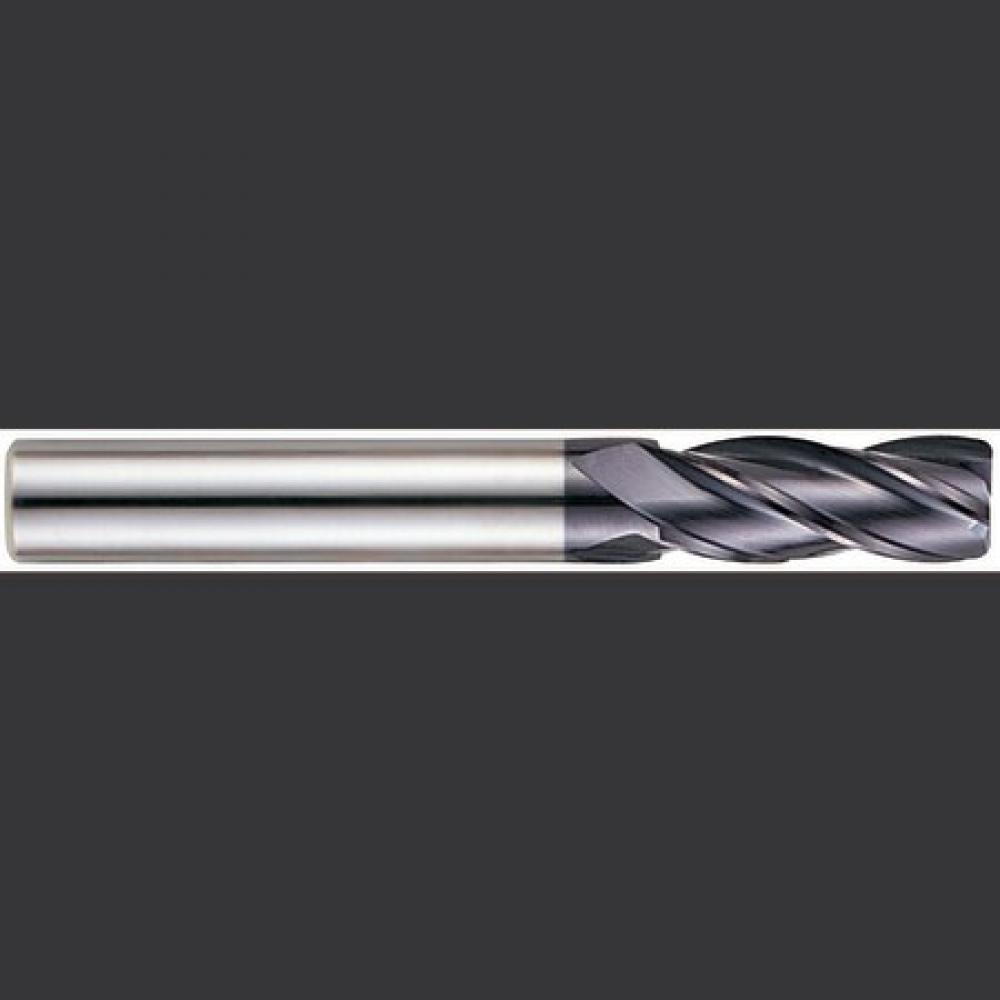

20X20X55X110XR2.0 4FL LONG CORNER RADIUS METRIC X-POWER CARBIDE
Specifications
| Length Of Cut (Inch) | 2.1654 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.0787 |
| Type | Carbide, 4 Flute Long Length Corner Radius |
| Length Of Cut (Metric) | 55.00 |
| Coating/Finish | AlTiN |
| Corner Radius (Metric) | 2.00 |
| Number Of Flutes | 4 |
| Cutting Direction | Right |
| Short Description | 4FL LONG CORNER RADIUS METRIC X-POWER CARBIDE |
| Shank Type | Plain |
| Series | EM819 |
| Diameter (Metric) | 20.00 |
| Shank Style | Plain |
| Application | P |
| Weight | 0.9000 |
| Corner Radius (Fraction) | 3/38 |
| Cut Type | Center Cut |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 11 cm |
| Size | 20x20x55x110xR2.0 |
| Diameter (Inch) | 0.7874 |
| Shank Diameter (mm) | 2.00 cm |
