YG-1
EM837917

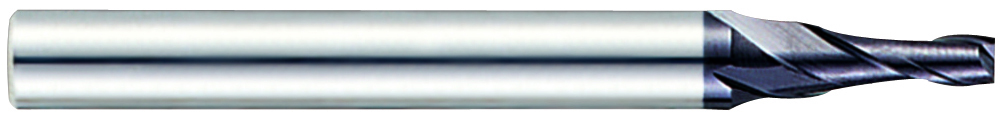

6.0 x 6 x 20 x 60 x 30 DEG 2FL X-POWER TAPERED END MILL
Specifications
| Diameter (Inch) | 0.2362 |
|---|---|
| Number Of Flutes | 2 |
| Diameter (Metric) | 6.00 |
| Type | Carbide, 2 Flute Taper |
| Overall Length (Inch) | 2.3622 |
| Material | Carbide |
| Application | P |
| Coating | AlTiN |
| Series | EM837 |
| Short Description | 2FL X-POWER TAPERED END MILL |
| Weight | 0.0530 |
| Cut Type | Center Cut |
| Length Of Cut (Inch) | 0.7874 |
| Overall Length (mm) | 6 cm |
| Cutting Direction | Right |
| Shank Diameter (Inch) | 0.2362 |
| Size | 6.0 x 6 x 20 x 60 x 30 DEG |
| Shank Style | Plain |
| Length Of Cut (Metric) | 20.00 |
| Shank Diameter (mm) | 6.00 mm |
