YG-1
EM863030

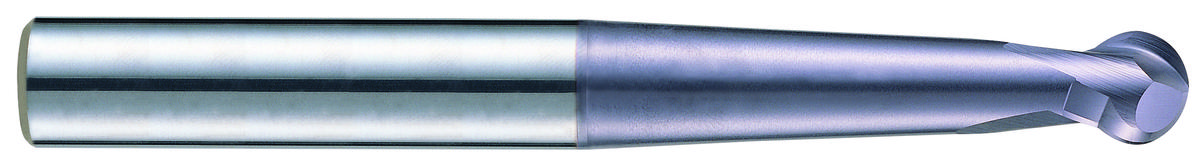

3.0 x 6 x 30 x 80 N2.5 2FL LONG BALL METRIC X-POWER SPHERE TYPE
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 3 |
| Overall Length (Inch) | 3-3/20 |
| Length Of Cut (Inch) | 1/11 |
| Overall Length (Metric) | 80 |
| Cutting Direction | Right |
| Shank Size (Metric) | 6 |
| Material | Carbide |
| Length Of Cut (Metric) | 2.3 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 2/17 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.10 |
| Neck Diameter (Metric) | 2.5 |
| Short Description | 2FL LONG BALL METRIC X-POWER SPHERE TYPE |
| Shank Diameter (Fractional) | 13/55 |
| Shank Diameter (Decimal) | 0.24 |
| Application | P |
| Length of Cut | 2.30 mm |
| Neck Diameter (Fraction) | 6/61 |
| Series | EM863 |
| Diameter | 3 mm |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.06 |
| Ball Nose Radius (Metric) | 1.5 |
| Ball Nose Radius (Fractional) | 1/17 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 1.18 |
| Length Below Shank (Metric) | 30 |
| Length Below Shank (Fractional) | 1-2/11 |
| Neck Diameter (Fractional) | 6/61 |
| Base Item Number | 2FL LONG BALL METRIC X-POWER SPHERE TYPE |
| Neck Diameter (Inch) | 0.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0630 |
| Shank Diameter (Inch) | 0.2362 |
| Size | 3.0 x 6 x 30 x 80 N2.5 |
| Shank Style | Plain |
