YG-1
EM868010

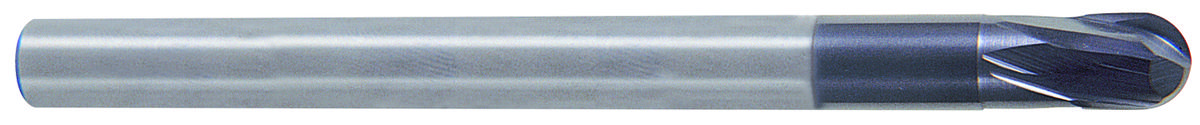

1.0 x 4 x 1 x 50 2FL H-15 BALL NOSE X-POWER METRIC FOR OVER HRc55
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1 |
| Overall Length (Inch) | 1-31/32 |
| Length Of Cut (Inch) | 3/76 |
| Overall Length (Metric) | 50 |
| Cutting Direction | Right |
| Shank Size (Metric) | 4 |
| Material | Carbide |
| Length Of Cut (Metric) | 1 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 3/76 |
| Unit Of Measure | Metric |
| Neck Diameter (Decimal) | 0.04 |
| Neck Diameter (Metric) | 0.95 |
| Short Description | 2FL H-15 BALL NOSE X-POWER METRIC FOR OVER HRc55 |
| Shank Diameter (Fractional) | 3/19 |
| Shank Diameter (Decimal) | 0.16 |
| Application | P,H |
| Length of Cut | 1 mm |
| Neck Diameter (Fraction) | 3/80 |
| Series | EM868 |
| Diameter | 1 mm |
| Workpiece Material | Steel, Hardened Steel |
| Ball Nose Radius (Decimal) | 0.02 |
| Ball Nose Radius (Metric) | 0.5 |
| Ball Nose Radius (Fractional) | 1/51 |
| Cut Type | Center Cut |
| Length Below Shank (Decimal) | 0.09 |
| Length Below Shank (Metric) | 2.2 |
| Length Below Shank (Fractional) | 2/23 |
| Neck Diameter (Fractional) | 3/80 |
| Base Item Number | 2FL H-15 BALL NOSE X-POWER METRIC FOR OVER HRc55 |
| Neck Diameter (Inch) | 0.04 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0295 |
| Shank Diameter (Inch) | 0.1575 |
| Size | 1.0 x 4 x 1 x 50 |
| Shank Style | Plain |
