YG-1
EM876015

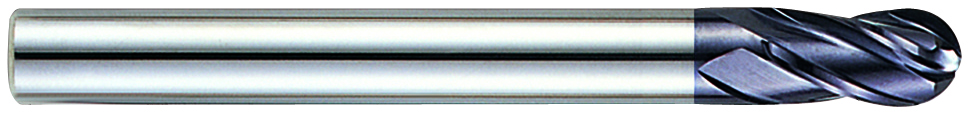

1.5 x 3 x 3 x 38 2FL SHORT BALL X-POWER
Specifications
| Coating/Finish | AlTiN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 1.5 |
| Overall Length (Inch) | 1-1/2 |
| Length Of Cut (Inch) | 2/17 |
| Overall Length (Metric) | 38 |
| Cutting Direction | Right |
| Shank Size (Metric) | 3 |
| Type | Carbide, 2 Flute Short Length Ball Nose |
| Material | Carbide |
| Length Of Cut (Metric) | 3 |
| Number Of Flutes | 2 |
| Diameter (Inch) | 1/17 |
| Unit Of Measure | Metric |
| Short Description | 2FL SHORT BALL X-POWER |
| Shank Diameter (Fractional) | 2/17 |
| Shank Diameter (Decimal) | 0.12 |
| Application | P |
| Length of Cut | 3 mm |
| Series | EM876 |
| Diameter | 1.50 mm |
| Workpiece Material | Steel |
| Ball Nose Radius (Decimal) | 0.03 |
| Ball Nose Radius (Metric) | 0.75 |
| Ball Nose Radius (Fractional) | 1/34 |
| Cut Type | Center Cut |
| Base Item Number | 2FL SHORT BALL X-POWER |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.0190 |
| Shank Diameter (Inch) | 0.1181 |
| Size | 1.5 x 3 x 3 x 38 |
| Shank Style | Plain |
